- MAIN FEATURE
- - FULL CAGE FORMING
- - QUICK ROLL CHANGE
- - CONTINUOUS OPERATION
- - MONITORING SYSTEM
SPECIFICATION

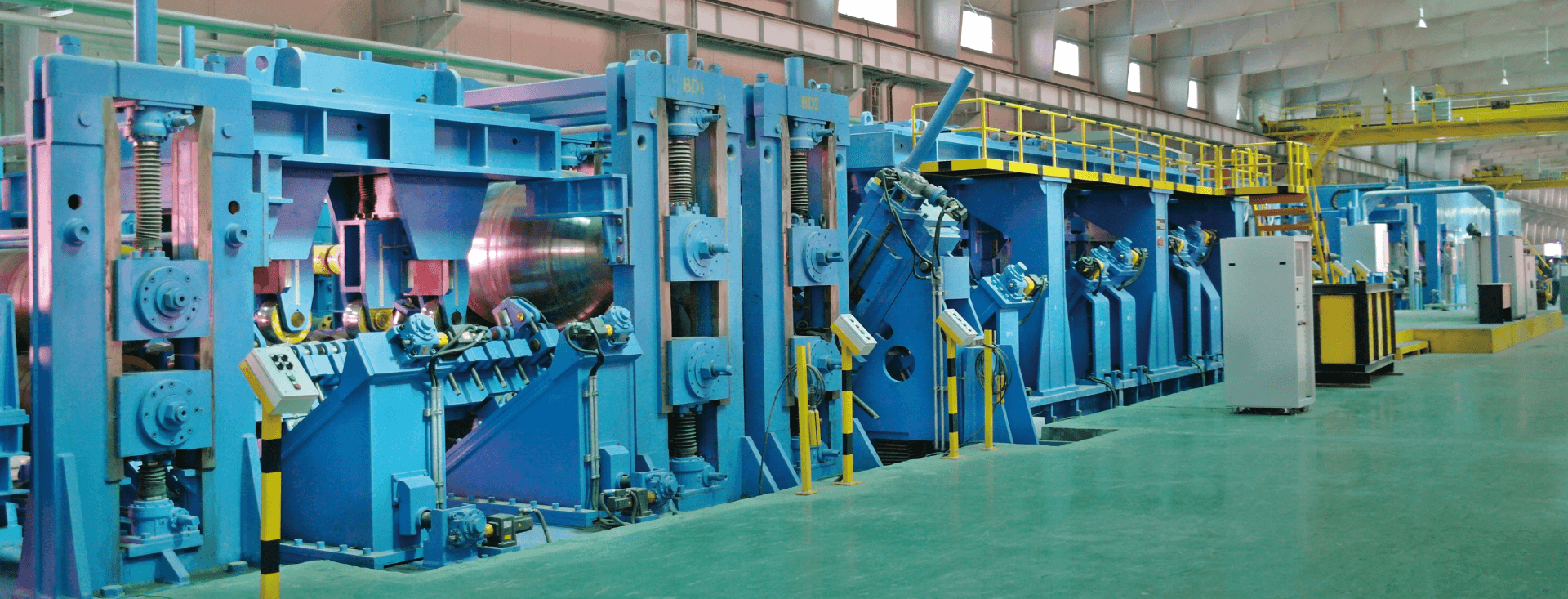

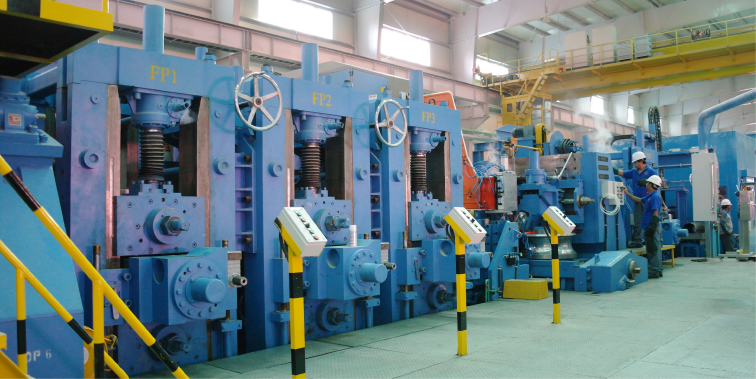

ERW/API PIPE MILL 20",24",26"ØO. Diameter | 6"-20"/168.3 - 508.0mm | 8"-24"/219.1 - 610.0mm | 10"-26"/273.1 - 660.4mm |
W. Thickness | Max. 16.0mm | Max. 20.0mm | Max. 24.0mm |
Grade | API X-80 | API X-80 | API X-80 |
Line Speed | Max. 40 mpm | Max. 35 mpm | Max. 35 mpm |
Welding | 600/1,200KW | 600/1,200KW | 600/1,800KW |
Annealing | 2,000KW | 2,500KW | 3,000KW |
